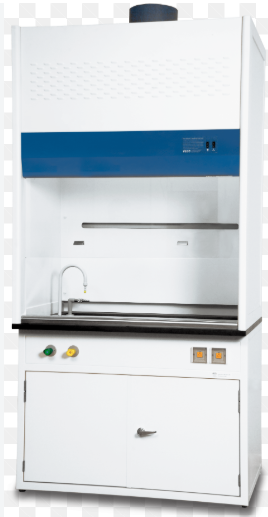

ESCO FRONTIER MONO DUCTED FUME HOOD 1.2M EFH-4A8 WITH EXTERNAL BLOWER

The ESCO FRONTIER MONO DUCTED FUME HOOD 1.2M EFH-4A8 WITH EXTERNAL BLOWER is a robust, aerodynamic laboratory ducted containment system engineered to protect personnel from toxic chemical fumes, volatile organic vapors, hazardous gases, and acid aerosols across chemical synthesis, pharmaceutical manufacturing, petrochemical, and academic research laboratories.

Designed with an aerodynamic face profile, durable Esco Resinate™ phenolic resin internal liner, and a precision-counterbalanced vertical sliding sash, the EFH-4A8 maintains a stable face velocity of 0.5 m/s (100 fpm) at full-open height. Bundled with a dedicated high-capacity external exhaust blower, it delivers continuous negative pressure containment and total vapor evacuation.

PRODUCT KEY FEATURES AND SPECIFICATIONS:
• Brand: Esco Lifesciences
• Model / Series: Frontier® Mono (Model EFH-4A8)
• Part Number / SKU: 2090135-ESCO[cite: 1]
• Country of Origin: Singapore / UK[cite: 1]
• Hood Width / Size: 4 feet (1.2 meters nominal)[cite: 1]
• External Dimensions: Approx. 1,200 mm (W) x 873 mm (D) x 1,500 mm (H)[cite: 1]
• Type: Ducted bypass chemical fume hood[cite: 1]
• Face Velocity: 0.5 m/s (100 fpm) at full-open sash height[cite: 1]
• Required Exhaust Volume: 1,109 m³/h at 68 Pa static pressure[cite: 1]
• Exhaust Collar Outlet: 250 mm (10-inch) diameter round collar[cite: 1]
• Internal Chamber Liner: Esco Resinate™ solid phenolic resin (highly resistant to aggressive acids, solvents, and heat)[cite: 1]
• Sash Construction: Laminated or tempered safety glass, vertical sliding with counterbalanced mechanism
• Exhaust Blower: Complete system supplied with industrial-grade external chemical-duty blower[cite: 1]
• Aerodynamic Structure: Sloped airfoil entry minimizes edge turbulence and operator exposure
• Utility Fixtures: Service fixture provisions for water, gas, vacuum, and electrical receptacles
• Electrical Requirements: 220–240 V AC, 50/60 Hz[cite: 1]
• Applications: General chemistry, acid digestion, organic synthesis, solvent distillation, and clinical preparation
• Delivery Period: 4 to 6 weeks, depending on availability with OEM (Delivery by air)[cite: 1]
